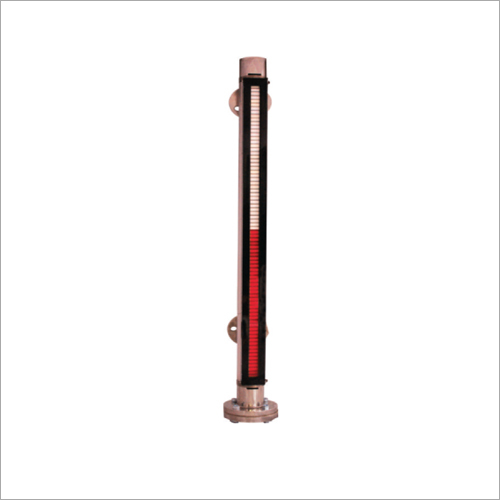

Direct Type Magnetic Level Indicator

Name: Direct Type Magnetic Level Indicator
Brand: DAVISON INSTRUMENTS PVT LTD
Price: 5000 INR
Availability: InStock

Price 5000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Direct Type Magnetic Level Indicator Specification

Mounting Type
Vertical Mounting

Sensor Type
Magnetic Float Sensor

Usage & Applications
Chemical, Petrochemicals, Water Treatment, Oil & Gas, Tanks, Vessels

Connectivity Type
Flanged or Threaded Connections

Measuring Range
Customizable, typically 300 mm to 5000 mm

Installation Type
Side/Top Mounted

Protection Level
Weatherproof / IP65

Display
Magnetic Roller/Flapper Visual Indicator

IP Rating
IP65, Available up to IP68 on request

Product Type
Direct Type Magnetic Level Indicator

Operating Temperature
-20C to +150C

Working Temperature
Up to 150C

Input
Not Required (Mechanical Operation)

Pressure Type
Suitable for up to 10 kg/cm

Diameter
Float Diameter typically 28 mm (customizable)

Application
Liquid level Measurement

Supply Voltage
Not Required

Accuracy
10 mm or better

Dimension (L*W*H)
As per Measuring Range Specified

Weight
As per Length and Material (Varies)

Warranty
Yes

Maximum Fluid Density
0.6 to 1.9 g/cm³

Connection Size
1½" or 2" NB Flanged (ANSI/DIN/BS/IS Standards)

Float Material
SS316/PTFE/PP

Material of Construction
SS304/SS316, PP, PVC (as per media compatibility)

Scale Marking
Graduated in mm/cm/inches (customizable)

Process Connection Orientation
Side/Top/Customizable

Chamber Diameter
Typically 50 NB/80 NB

Indicator Color
Red & White (High Visibility)

Ambient Temperature Range
Up to 70°C

Optional Accessories
Level Switches, High/Low Alarm, 4-20 mA Transmitter

Direct Type Magnetic Level Indicator Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7-10 Days

About Direct Type Magnetic Level Indicator

Get the most sought-after solution for precise liquid level measurement with our Direct Type Magnetic Level Indicator. Personalise your order with a pivotal selection of SS304, SS316, PP, or PVC construction, ensuring valiant reliability for every media compatibility. Enjoy Instant Checkout and exceptional weatherproof protection (IP65/IP68). The high-visibility red and white indicator, custom scale graduations, and customizable chamber diameter guarantee unmatched adaptability. Optional accessories like level switches, alarms, and transmitters provide a comprehensive monitoring suite for critical applications across chemical, petrochemical, water treatment, and oil & gas industries. Made in India by a trusted manufacturer and supplier, each device promises robust performance, a solid warranty, and long service life.

Applications of Direct Type Magnetic Level Indicator

Widely used in tanks and vessels, the Direct Type Magnetic Level Indicator is pivotal for reliable, non-intrusive liquid level measurement in complex plant environments. It acts as a valiant monitoring solution for a variety of applications including chemicals, petrochemicals, water treatment, and oil & gas. This sought-after technology offers accurate readings, visual clarity, and compatibility with essential plant processes, making it a trusted choice across industrial sectors where dependable performance is paramount.

Packaging, Dispatch & Delivery for Magnetic Level Indicator

Packing & Dispatch takes place under stringent quality checks, ensuring your magnetic level indicator reaches you in optimal condition. With Stock Ready options and streamlined handover, we expedite shipping across India to meet main domestic market requirements. Each unit is securely packed to prevent transit damage, with delivery timelines tailored to your project schedule. Our dedicated team ensures your customized product is promptly dispatched and efficiently tracked until successful installation.

FAQs of Direct Type Magnetic Level Indicator:

Q: How does the Direct Type Magnetic Level Indicator operate?

A: The indicator employs a magnetic float sensor to detect liquid levels. As the float rises or falls with the liquid, it activates a magnetic roller or flapper indicator in a sealed chamber, providing a clear visual display without direct contact with the liquid.

Q: What materials are available for the construction of this level indicator?

A: You can personalize the material of construction based on media compatibility, selecting from robust options like SS304, SS316, PP, or PVC for both the chamber and float. This ensures optimal safety and durability in your application.

Q: Where can the Direct Type Magnetic Level Indicator be installed?

A: The device is designed for versatile installations and can be mounted vertically on the side or top of tanks and vessels. Process connections, including flanged or threaded types, accommodate various ANSI, DIN, BS, or IS standards.

Q: What is the measuring accuracy of this level indicator?

A: The Direct Type Magnetic Level Indicator offers a measuring accuracy of 10 mm or better, delivering reliable, precise readings essential for plant operations.

Q: When should optional accessories like level switches or transmitters be used?

A: Optional accessories such as level switches, high/low alarms, and 4-20 mA transmitters are recommended when additional monitoring, remote signaling, or process automation is needed for enhanced safety or integration with plant control systems.

Q: What are the main application areas for this level indicator?

A: This instrument is sought-after in chemical, petrochemical, water treatment, oil & gas industries, and is commonly used in tanks and vessels requiring accurate liquid level control and monitoring.
